Hospital & sterilization centers

Hospital and sterilization centers

TMI-Orion offers a range of data loggers for sterilization monitoring. These data loggers are used by hospital sterilization rooms, validation organizations or manufacturers of sterile products.


HOSPITAL PROCESSES, STERILIZATION CENTERS



Steam sterilization validation



Steam autoclaves are used to sterilize products inside vials, bottles, pouches, and most pharmaceutical and medical equipment.

During the sterilization process, the temperature must reach a definite temperature for a determined period of time. TMI-Orion offers solutions to monitor temperature inside containers and temperature and pressure inside the autoclaves, with loggers of different sizes and various types of probes.

variés.

TMI-Orion solutions

  • Data loggers

NanoVACQ Temperature and NanoVACQ PT-Tc

  • Software

Qlever software platform

+ Autoclave validation Module (ISO 17665 / EN 13060 / EN 285 / EN 868)

+ Authentication-tracking Module (FDA 21 CFR Part 11) : optional

+ LDAP Module : optional

  •  Connectivity

2.4 GHz radio transceiver or wired interface for NanoVACQ

Sterilization room

Routine control of steam sterilizers



Thanks to an excellent reliability at elevated temperature, the TMI-Orion data loggers are very suitable to the routine control of the autoclaves specifications during sterilization cycles.

TMI-Orion solutions


  • Data loggers

​NanoVACQ PT-Tc

  • Software

Qlever software platform

+ Autoclave validation Module (ISO 17665 / EN 13060 / EN 285 / EN 868)

+ Authentication-tracking Module (FDA 21 CFR Part 11) : optional

+ LDAP Module : optional

  •  Connectivity

2.4 GHz radio transceiver or wired interface for NanoVACQ

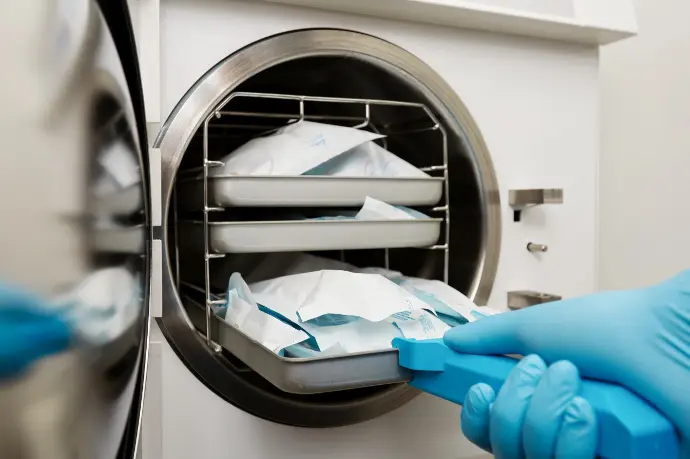

Medical autoclave

Ethylen oxide sterilization control



Ethylene Oxide sterilization validation requires measuring relative humidity and temperature parameters inside the chambers with ATEX compliant data loggers, such as the NanoVACQ HT Ex. dans les enceintes avec des enregistreurs de données ATEX, comme le NanoVACQ HT Ex.

TMI-Orion has a range of ATEX compliant data loggers marked “II 1G Ex ia IIC T3 Ga” or “II 1G Ex ia IIC T6 Ga” and compliant with regulations EN 60079-0 and EN 60079-11.

TMI-Orion solutions


  • Data loggers

NanoVACQ HT Ex, PicoVACQ HT Ex


  • Software

Qlever software platform

+ Authentication-tracking Module (FDA 21 CFR Part 11) : optional

+ LDAP Module : optional


  •  Connectivity

Wired interface


Washing and disinfection temperature control


Washing-disinfection cycles are performed for disinfection purposes or for cleaning loads prior to steam sterilization as this sterilization process is only efficient on clean surfaces.

After the washing-disinfection cycle, the load is inspected and readied for steam sterilization.

Washer-disinfector machines usually use hot sprayed water.

TMI-Orion offers solutions for setup and detailed analysis of washing and disinfection cycles. Validation reports are compliant with the ISO 15883 norm.

TMI-Orion solutions


  • Data loggers

NanoVACQ or NanoVACQ Flat or MiniVACQ or PicoVACQ


  • Software

Qlever software platform

+ Washing-disinfection Module (ISO 15883)

+Authentication-tracking Module (FDA 21 CFR Part 11) : optional

+ LDAP Module : optional


  •  Connectivity

2.4 GHz radio transceiver or wired interface for NanoVACQ, Wired interface for NanoVACQ Flat, PicoVACQ and MiniVACQ.


Medical instruments

Mapping of climatic and thermostatic chambers, freezers, cold rooms...


Mapping is necessary to ensure all points of the chamber are at the required temperature.


A data logger operating for days at low temperature is recommended.

With TMI-Orion solutions, data are treated and presented in an extensive compliance with FDX15-140:2024 report.


TMI-Orion solutions


  • Data loggers

NanoVACQ or PicoVACQ or VACQ xFlat


  • Software

Qlever software platform

+ Mapping module (FDX15-140:2024)

+Authentication-tracking Module (FDA 21 CFR Part 11) : optional

+ LDAP Module : optional


  •  Connectivity

2.4 GHz radio transceiver or wired interface for NanoVACQ and VACQ xFlat,
Wired interface for PicoVACQ and MiniVACQ.





TMI-ORION PORTFOLIO FOR HOSPITALS AND STERILIZATION CENTERS


TMI-Orion offers a wide range of data loggers for hospitals and sterilization centers, measuring temperature, pressure, humidity

You will find a choice of loggers covering temperatures from -90°C to 140°C. A thermal shield is necessary to measure temperatures beyond 140°C.

Sensors are Pt100, Pt1000 or thermocouples. The probes have various forms and dimensions. Sensors can be internal to the logger, placed at the end of a rigid probe 10 to 100 mm long, or at the end of a flexible or semi-rigid probe, up to 1 meter long.

Depending on the models, you can chose loggers with 1 to 32 measurement channels.



Data loggers

Temperature measurement in thermal processes from -70°C to +140°C.

The PicoVACQ Temperature is a very small autonomous temperature datalogger (diameter 15 mm). It is equipped with 1 or 2 temperature sensors at the end of rigid, semi-rigid or flexible probes.


Read more

PicoVACQ Temperature

Enregistreurs température TMI-Orion - gamme PicoVACQ



Enregistreur pression et température TMI-Orion - PicoVACQ

PicoVACQ Pressure and Temperature

The PicoVACQ PT is a pressure and temperature data logger, from 0°C to +140°C and up to 15 bar.

With its very small dimensions (diameter 16 mm) it can be placed in sprays or very small containers. It is also used in steam sterilization applications.



Read more



The NanoVACQ Temperature is an autonomous data logger equipped with 1 to 3 temperature sensors. Some models are watertight under pressure up to 30 bar.

There are many models available, answering most industrial needs. They vary by number and type of probes, temperature operating range and battery capacity.

Its ruggedness allows temperature measurement in harsh environments.

The models NanoVACQ 1Tc-2Td and the disconnectable probe version NanoVACQ 1Tc-2Tdi are very well adapted for freeze drying process.


Read more

NanoVACQ Temperature

TMI-Orion temperature data loggers-NanoVACQ


The NanoVACQ Flat is a single probe temperature data logger. The temperature probe can be internal or have various sizes up to 100 mm. Its small size, diameter 40 mm and height 11 mm, makes it suitable for washing processes or any sterilization process.



Read more

TMI-Orion temperature data loggers-NanoVACQ Flat

NanoVACQ Flat



NanoVACQ PT has one humidity sensor and one or two temperature sensors.

The combination of pressure and temperature measurement is the best way to validate saturated steam sterilization processes.

The standard models can vary by probe shape or length.


Read more

Enregistreur pression et température TMI-Orion - NanoVACQ PT-Tc

NanoVACQ Pressure and Temperature



NanoVACQ Humidity and temperature is equipped with one relative humidity sensor and one or two temperature sensors.

The standard models can vary by probe shape or length.


Read more

Enregistreur température et humidité TMI-Orion - NanoVACQ HT

NanoVACQ Humidity and Temperature



PicoVACQ HT has one humidity sensor and one internal temperature sensor. It is available in Ex version for applications in explosive environment, such as Ethylene oxyde sterilization validation.




Read more

PicoVACQ Humidity and Temperature

Enregistreur température et humidité TMI-Orion - PicoVACQ HT



MiniVACQ is adapted to thermal processes from -40°C to +100°C. It is an ideal temperature data logger for washing-desinfection processes.



Read more

MiniVACQ Temperature

Enregistreurs température TMI-Orion - MiniVACQ 1Tc, T



VACQ xFlat is a thermocouple data logger. It can be used for steam sterilization validation if it is placed outside the autoclave. It can also be used inside depyrogenation process (dry heat) where the data logger is protected by a thermal shield.



Read more

VACQ xFlat

Enregistreur température TMI-Orion - VACQ xFlat



The FullRadio option enables set up and reading of data in real time and wireless, by bi-directional radio transmission. It is then possible to start and stop the data logger while it stays inside the industrial process.

FullRadio is adapted to sterilization process validation



Read more

FullRadio transmission

Communication avec PC -TMI-Orion - radio et FullRadio
