PicoVACQ Temperature platinum sensors

Measure temperature during your thermal validation processes, from -70 °C to +140 °C, even in very small volumes.

​

PicoVACQ is the most miniaturized family of products from TMI-Orion: D. 15 mm, lengt​h from 22 m.

All the models of this family enable quality control and process validation. Among the most common applications:


  • Sterilization validation (steam or ethylene oxide),
  • Freezer mapping,
  • Temperature measurement in microwave ovens,
  • Pasteurization validation.


  • 1 internal temperature sensor.


| For more information, download the data sheet!

  • ​ PicoVACQ 1T - Fr
  •  PicoVACQ 1T - En

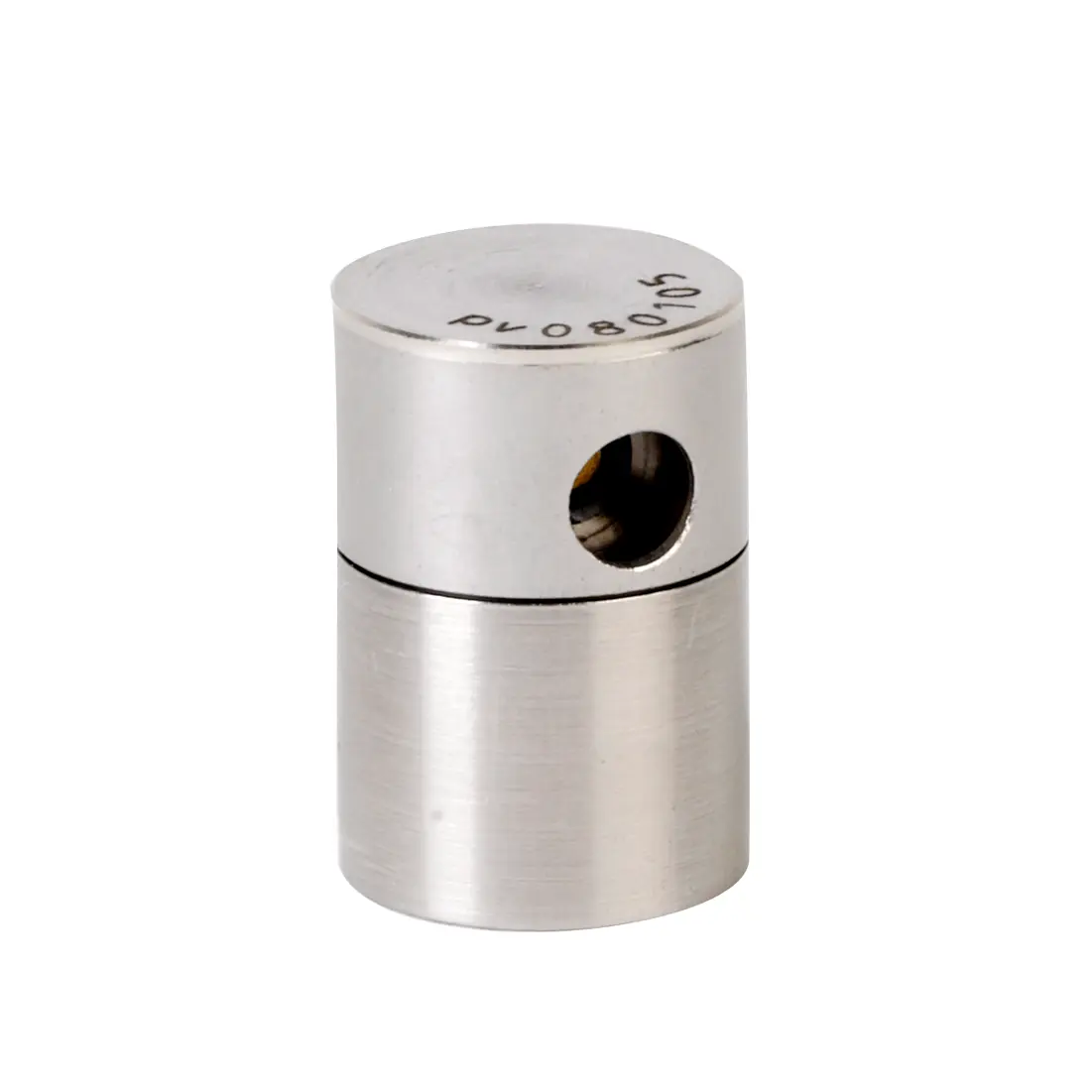

PicoVACQ 1T


TMI-Orion temperature data logger-PicoVACQ 1T


TMI-Orion temperature data logger-PicoVACQ 1Tc

PicoVACQ 1Tc

  • 1 temperature sensor at the end of a rigid probe with a length to be determined between 10 and 220 mm.


| For more information, download the data sheet!

  •  PicoVACQ 1Tc - Fr
  •  PicoVACQ 1Tc - En


  • 1 or 2 temperature sensors at the end of 1 or 2 flexible or semi-rigid probes for temperature measurement from -70 °C to +140 °C.

Also available with long rigid probes.


| For more information, download the data sheet!

  •  PicoVACQ 1Td - Fr
  •  PicoVACQ 1Td - En

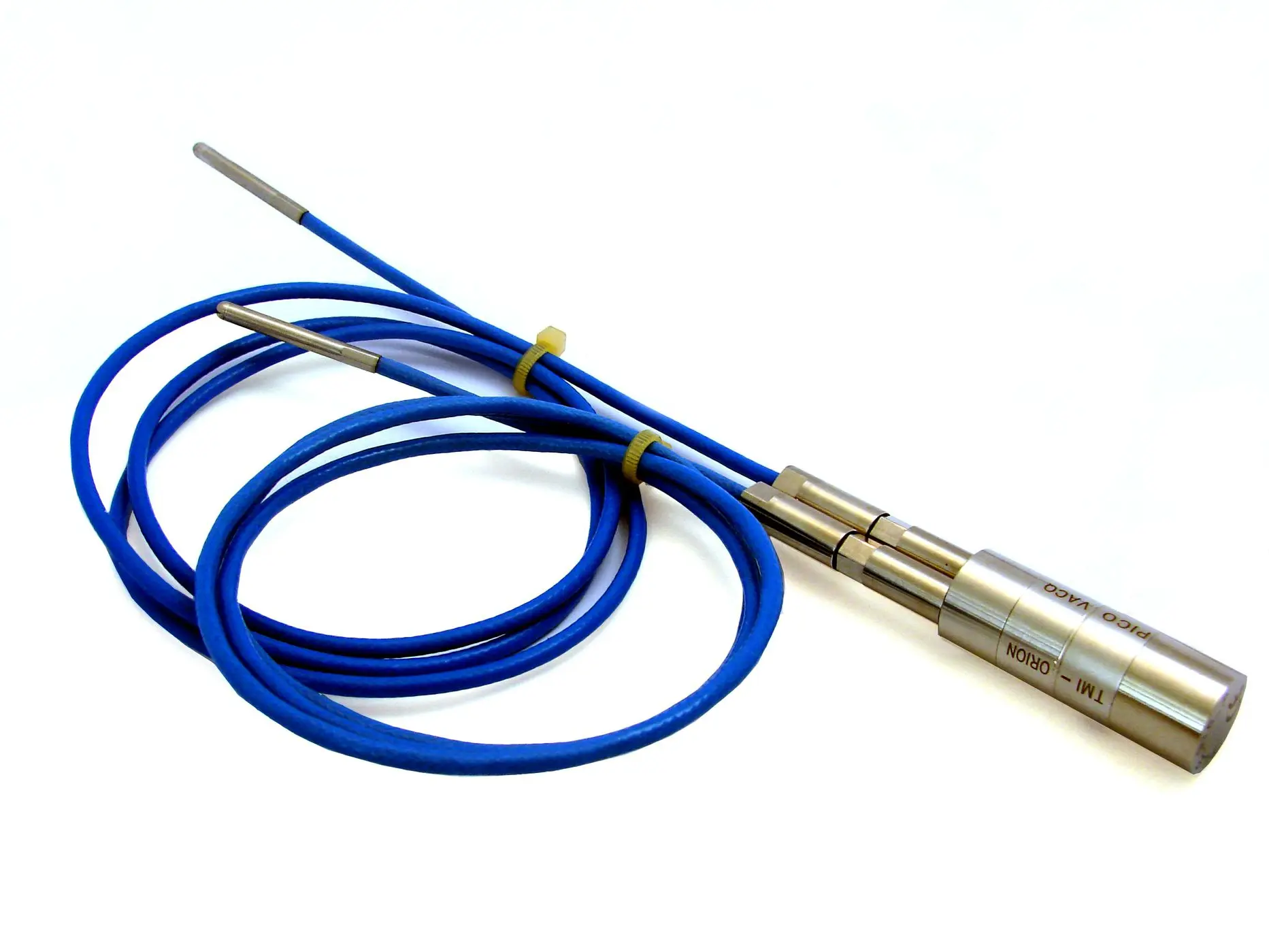

PicoVACQ 1Td, PicoVACQ 2Td

TMI-Orion temperature data logger-PicoVACQ 1Td, 2Td


  • 1 temperature sensor at the end of a rigid probe,
  • 1 temperature sensor at the end of a semi-rigid probe.


| For more information, download the data sheet!

  •  PicoVACQ 1 Tc-Td - Fr
  •  PicoVACQ 1 Tc-Td - En

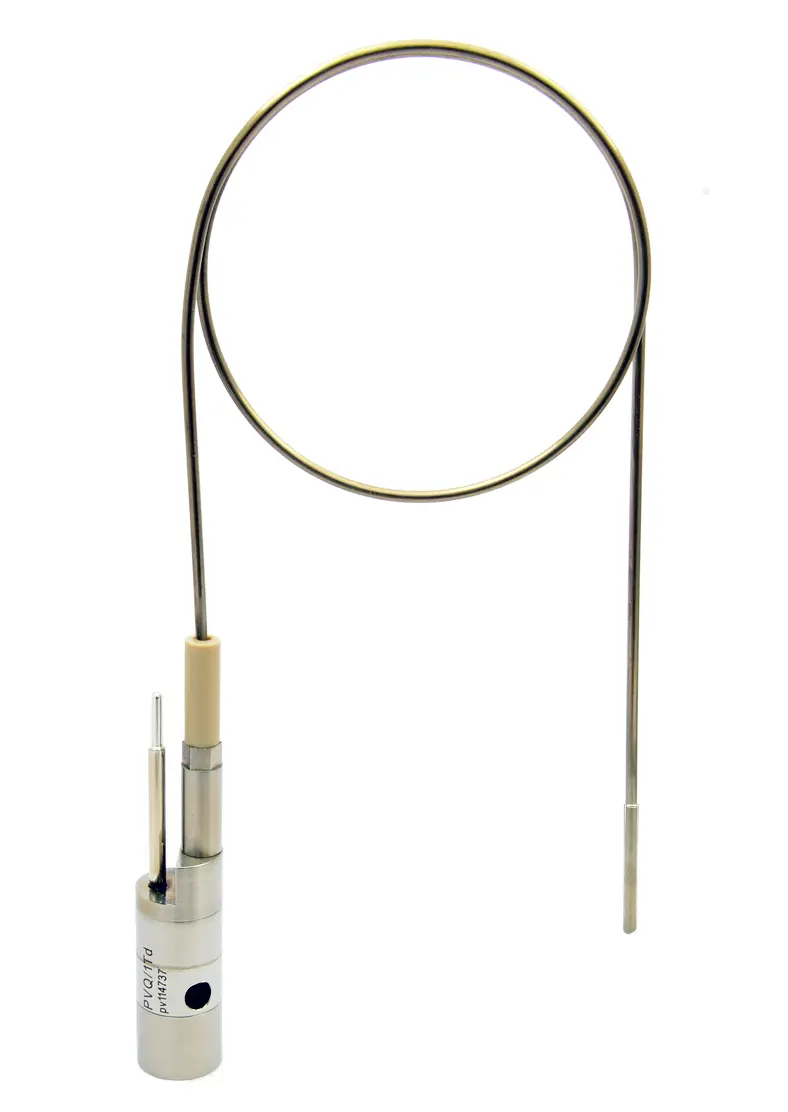

PicoVACQ 1Tc-1Td

TMI-Orion temperature data logger-PicoVACQ 1Tc, 1Td


  • 1 temperature sensor at the end of a connectable thin flexible probe. Fine for temperature control in dry-freezer (down to -70°C).


| For more information, download the data sheet!

  •  PicoVACQ 1Tdi - Fr
  •  PicoVACQ 1Tdi - En

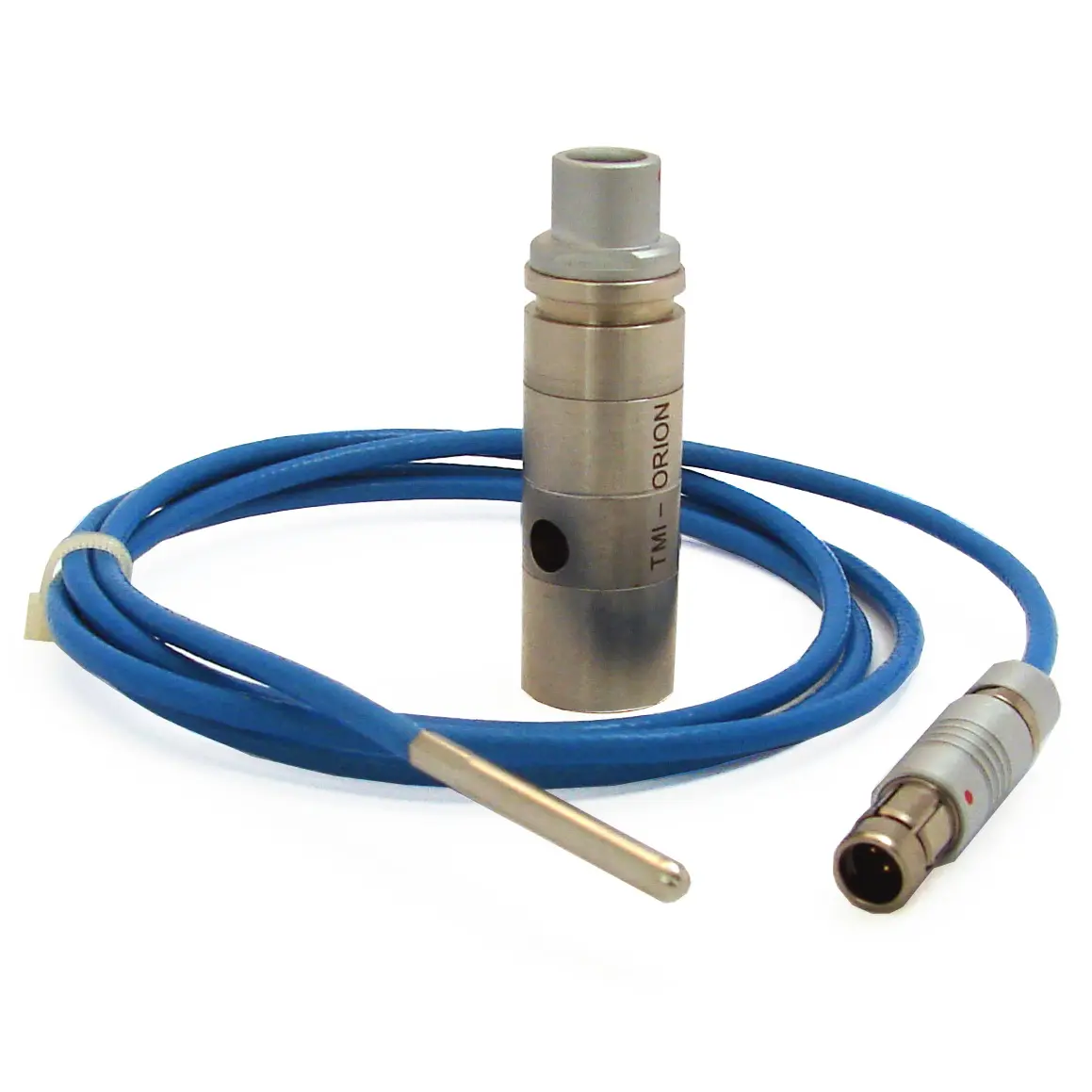

PicoVACQ 1Tdi

TMI-Orion temperature data logger-PicoVACQ 1Tdi


Two special versions for temperature measurement inside micro wave ovens: to be pinned into the food or immersed in a liquid.


| For more information, download the data sheet!

  •  PicoVACQ Microwave
  •  PicoVACQ Microwave - En

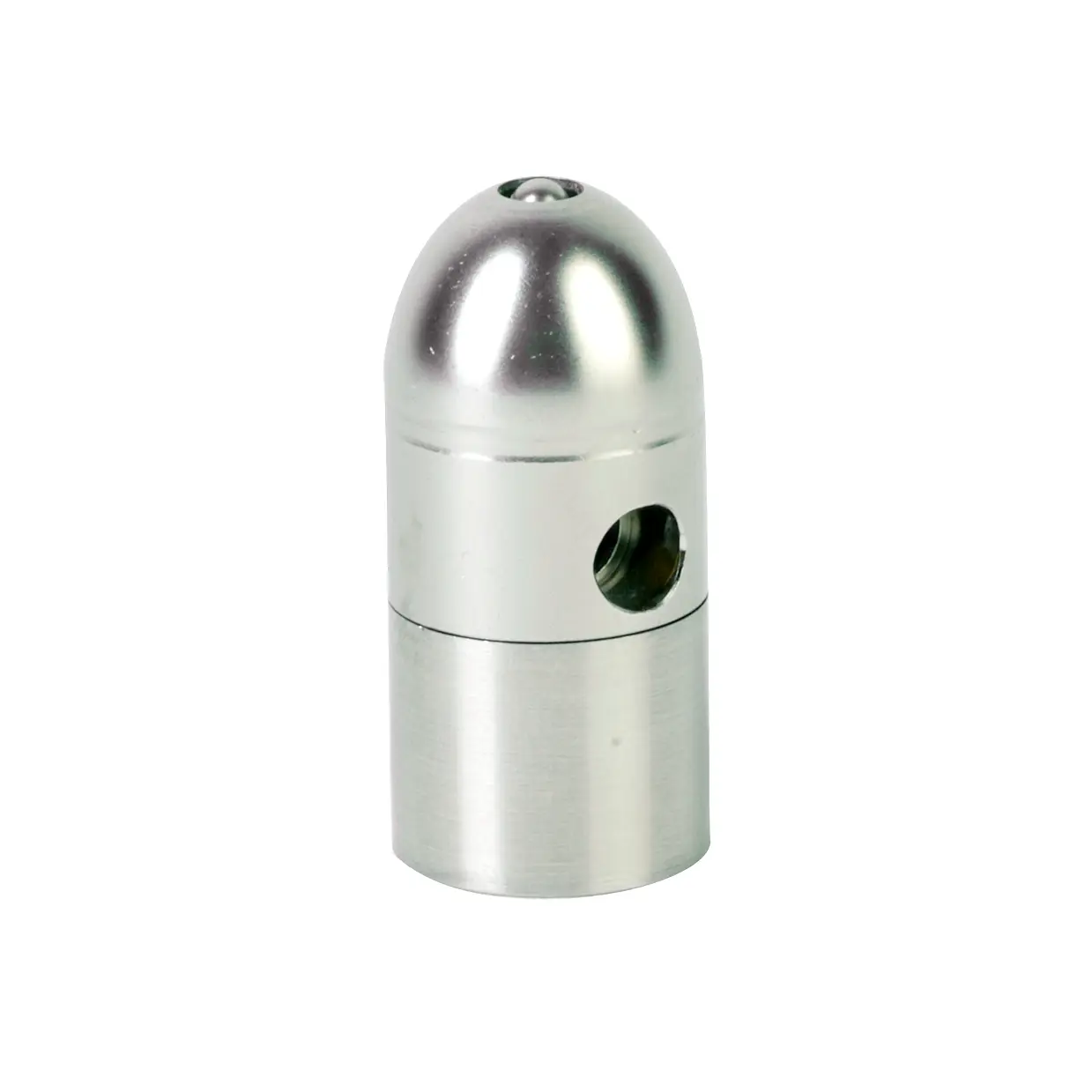

PicoVACQ Microwave

TMI-Orion temperature data logger-PicoVACQ Microwave


Some PicoVACQ Temperature models are available with EX version for applications in explosive environment.


| For more information, download the data sheet!

  •  PicoVACQ Ex - Fr
  •  PicoVACQ Ex - En

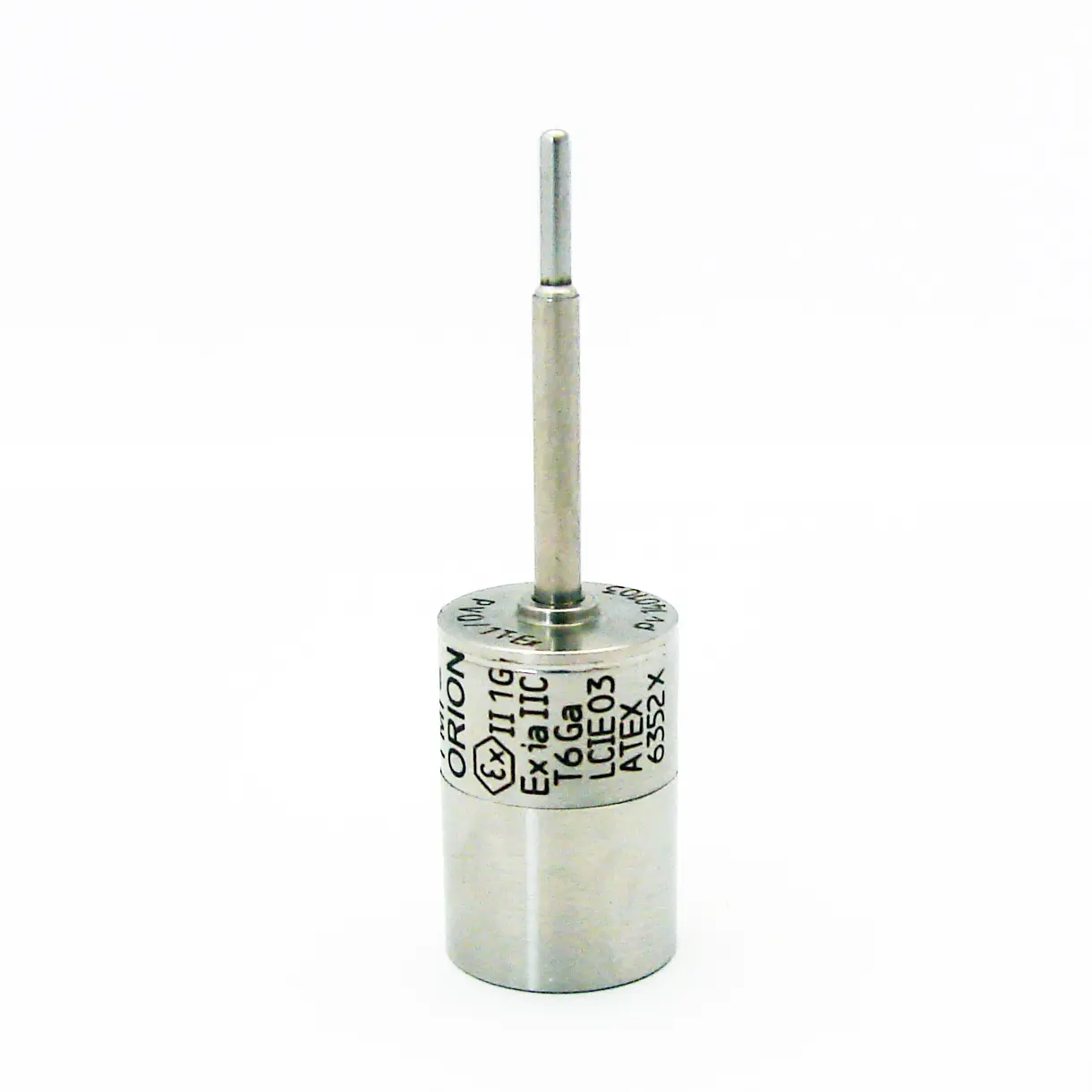

PicoVACQ Ex - ATEX Compliance

TMI-Orion temperature data logger-PicoVACQ Ex


Positioning kits are available maintain the sensor at the cold spot in the process.


| For more information, download the data sheet!

  •  Accessoires - Fr
  •  Accessoires - En

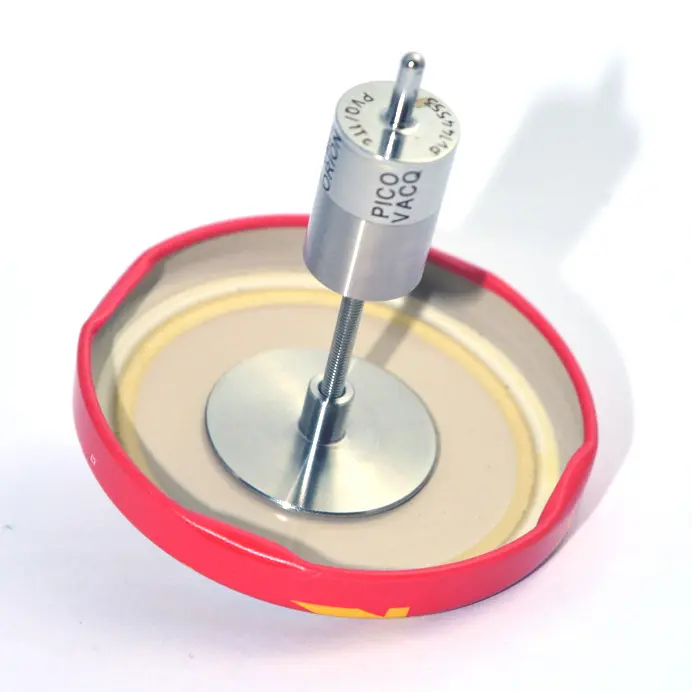

Accessories

TMI-Orion positioning kit data logger in jar-across the wall


TMI-Orion solutions include:


- One or more embedded autonomous data loggers,
- Qlever Software, which allows the acquisition, visualization and analysis of measured data,
- A wired, radio or FullRadio communication interface,
- A thermal shield for processes in which the temperature exceeds the temperature to which the datalogger can be exposed.
