Ceramics

Ceramics - Bricks​ - Tiles

TMI-Orion presents a full range of high technology data loggers designed for ceramics, tile, and brick industries, measuring temperature, humidity, air flow and shrinkage in harsh environments during curing and drying processes. TMI-Orion data loggers work with dedicated software allowing visualization and data management for each industry.  ​


INDUSTRIAL PROCESSES OF CERAMICS, TILES AND BRICKS INDUSTRIES



Ceramic tile production

After clay extraction, the paste is shaped or cast to create objects, then cured inside kilns. TMI-Orion solutions are used to monitor and optimize processes during drying and curing phases.

A constantly evolving software, Qlever Ceramics, will allow you to interpret all your process data and improve efficiency.

The VACQ III, VACQ xFlat and CeriDry are available with Radio option. This allows a real time visualization of the measured data.


DRYING : Industrial process control



Drying is generally processed in a tunnel dryer or in chambers where the products are piled on carts and swept by hot air flow. TMI-Orion solutions enable the manufacturer to operate the industrial drying process validation considering 2-level controls:

  •   Room: Air temperature, room humidity, air velocity,
  •  Drying objects : dimensional variations (shrinkage), internal temperature and mass loss.

TMI-Orion solutions combine embedded data loggers, a communication interface and Qlever software platform. The loggers mentioned below can be combined together to manage the process parameters.

Air temperature, room humidity and product shrinkage



TMI-Orion Solutions


  • Data loggers

CeriDry, CeriDry Split, CeriDry Mini Split or High-T-Dry


  • Software

Qlever software platform


  •  Connectivity

Wired interface (CeriDry, CeriDry Split, CeriDry Mini Split and High-T-Dry)

OR

2.4 GHz radio transceiver for real time transmission (CeriDry, CeriDry Split)

Enregistreur température humidité et rétraction TMI-Orion - CeriDry

CeriDry correlates the evolution of humidity rate and air temperature with the shrinkage of bricks, tiles or ceramics while they dry. It also enables the acute evaluation of the drying of a product.

Read more

Temperature, air velocity



TMI-Orion Solutions


  • Data loggers

NanoVACQ Ad ou NanoVACQ Ad-Tc or NanoVACQ Ad-Td


  • Software

Qlever software platform


  •  Connectivity

USB wired interface

OR

2.4 GHz radio transceiver for real time transmission



Read more

NanoVACQ Ad-Td is an anemometry data logger specifically designed for drying processes in the ceramics industry. It allows a simultaneous measurement of temperature and air flow inside dryers or air flow and temperature inside products.

TMI-Orion anemometry and temperature data logger-NanoVACQ Ad-Td

Temperature mapping in various points of the dryer



TMI-Orion Solutions


  • Data loggers

VACQ xFlat


  • Software

Qlever software platform


  •  Connectivity

 Wired interface

OR

2.4 GHz radio transceiver for real time transmission



Read more

VACQ xFlat temperature data logger allows to measure temperature in various points, for thermal treatment monitoring in ceramics, bricks or tiles industry.


TMI-Orion thermocouple temperature data logger-VACQ xFlat FullRadio

Temperatures and mass variations during drying processes



TMI-Orion Solutions


  • Data loggers

DryBal


  • Software

Qlever software platform


  •  Connectivity

USB wired interface



Read more

TMI-Orion weight and temperature data logger-DryBal

Drybal temperature data logger allows to measure weight and temperature during drying processes in ceramics, bricks or tiles industry.




CURING



After drying, the carts are sent to the tunnel kiln for curing and move through the kiln in successive pushes. During the curing phase and the progress of the carts, the temperatur​e profile is carefully controlled.

The acquired time-stamped data must be related with the exact position of the controlled cart in the tunnel kiln. The manufacturer then has to analyze the measured data and take corrective actions throughout the process to reach and maintain the expected quality.



Thermal profile mapping in various points of a cart load during the entire industrial curing cycle



TMI-Orion Solutions


  • Data loggers

VACQ III or VACQ III FullRadio


  • Software

Qlever software platform

+ Qlever Ceramics module


  •  Connectivity

Wired interface

OR

2.4 GHz radio transceiver for real time transmission


Read more

TMI-Orion thermocouple temperature data logger-VACQ III Radio

Real time or after the process visualization of the data on the PC, with software description of the kiln and cart load configuration.

8 or 16 thermocouple probes are placed at different points of the cart while the VACQ III autonomous data logger, protected by a thermal shield, is fixed under the cart.


TMI-ORION PRODUCTS PORTFOLIO FOR CERAMICS INDUSTRY



You will find here a choice of data loggers for ceramics industry processes : temperature, relative humidity, air velocity, shrinkage and mass loss.

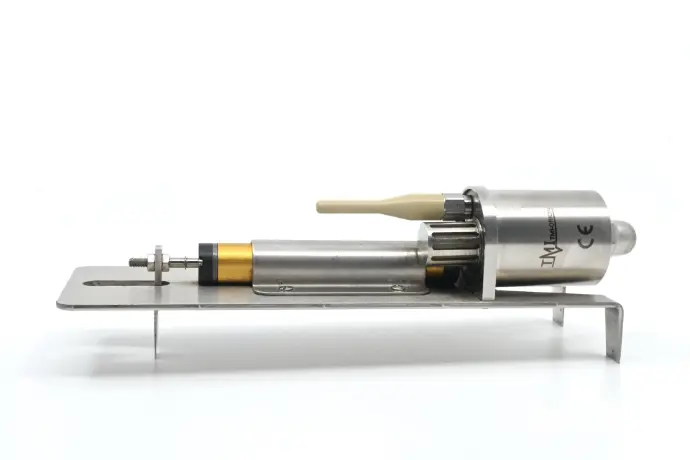

TMI-Orion temperature, humidity and shrinkage data logger-CeriDry

CeriDry

CeriDry, CeriDry radio, CeriDry FullRadio :

Read more

Air temperature (Max 140°C), air humidity and shrinkage.

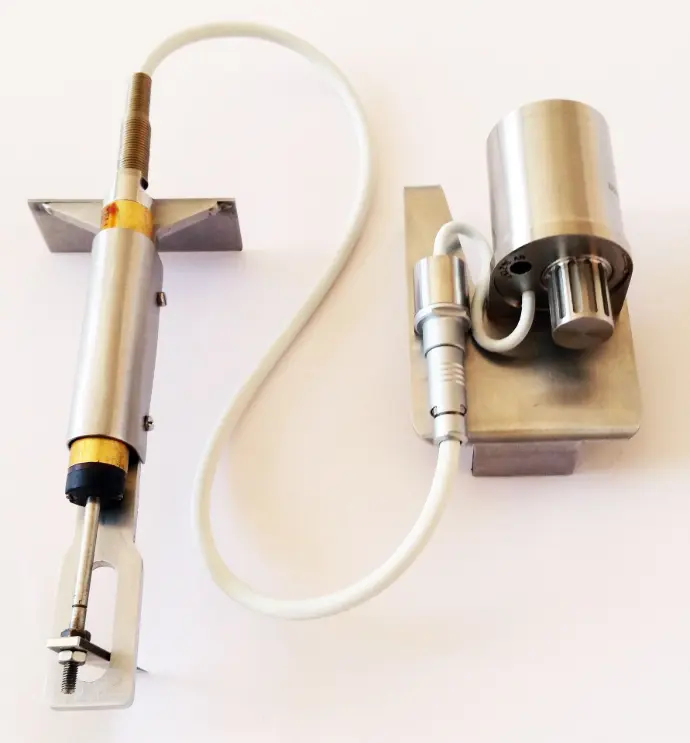

TMI-Orion temperature and humidity data logger-CeriDry Split

CeriDry Split, CeriDry radio, CeriDry Split FullRadio :

CeriDry Split

Read more

CeriDry split in two parts, temperature and humidity data logger on one side, retractometer (shrinkage) on the other side, for perfect flow of hot air.



TMI-Orion temperature and humidity data logger-NanoVACQ HT-Tc

Read more

NanoVACQ HT

NanoVACQ HT, Nano VACQ radio, NanoVACQ HT FullRadio

Air temperature (Max +140°C) and air humidity



TMI-Orion anemometry and temperature data logger-NanoVACQ Ad-Td

NanoVACQ Ad

Remote anemometer (1-meter probe)

Read more

NanoVACQ Ad-Tc

Air temperature (Max 140°C) + remote anemometer (1-meter probe).

NanoVACQ Ad-Td

Air temperature with remote sensor (Max 140°C, 1 meter probe) + remote anemometer (1-meter probe)

NanoVACQ Ad

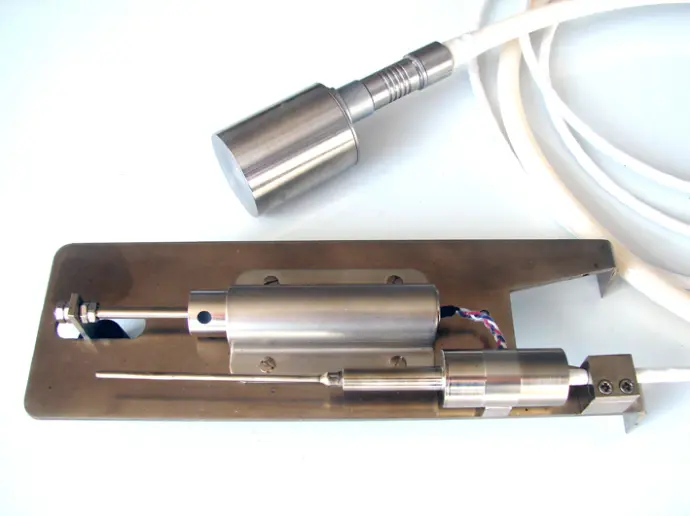

TMI-Orion temperature data logger-High-T-Dry

High-T-Dry

Read more

Air temperautre with remote sensor (Max 250°C C) + remote electronic retractometer (shrinkage) with water thermal shield.

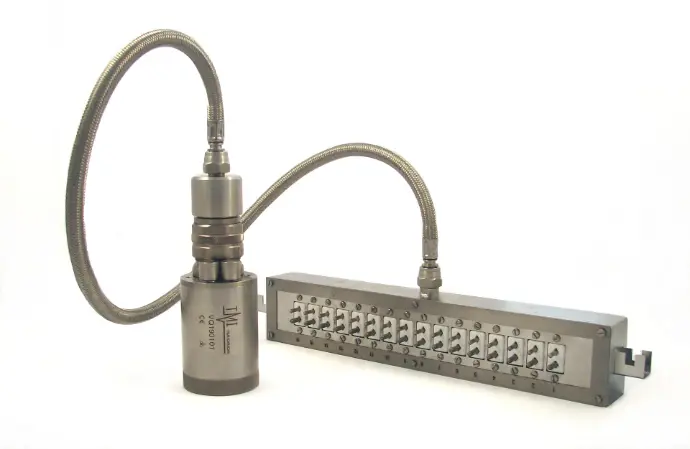

TMI-Orion thermocouple temperature data logger-VACQ III Radio

VACQ III, VACQ III radio, VACQ III FullRadio

Read more

Jusqu’à 16 connecteurs de thermocouples de type K (+1300°C maximum), placé dans un bouclier thermique à eau.

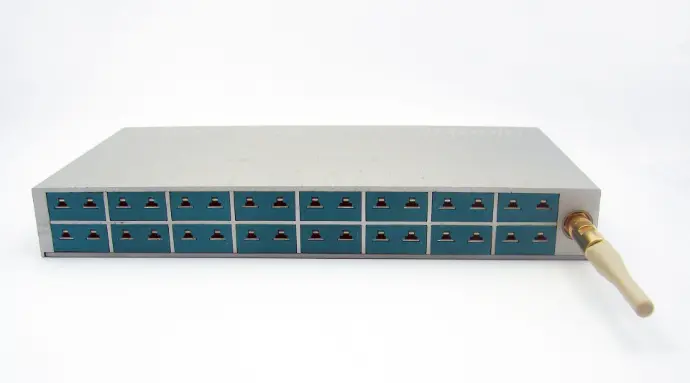

TMI-Orion temperature data logger-VACQ xFlat

VACQ xFlat 2.8 FullRadio

VACQ xFlat, VACQ xFlat radio, VACQ xFlat FullRadio

Read more

16 thermocouples, type T or K (1 to 10 meter)



Read more

TMI-Orion weight and temperature data logger-DryBal

DryBal

Temperature and mass variations up to 5 kg or 30 kg.



Accessories

Connectivity and accessories

  • Mono-USB interface ( connection cable between loggers and the PC).
  • 2.4 Ghz radio transceiver connected to the PC.
  • User replaceable batteries or battery packs.

Services

  • Calibration and adjustment of sensors : every year.
  • After-sales services: metrology, repair, assitance, hotline.
  • Design of custom solutions (products and software).

Thermal shields

For applications above +140°C, it is necessary to protect the data loggers with a thermal shield.

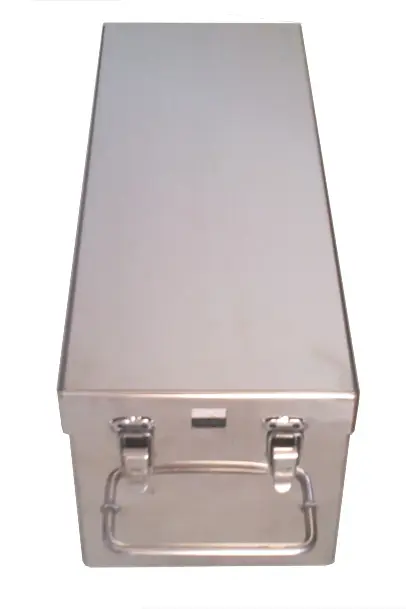

TMI-Orion thermal shield-VACQ III


TMI-Orion thermal shield data logger-VACQ xFlat



Qlever Software for Ceramics industries


For more information, download our Qlever guides


TMI-Orion-Flyer-Cermaics, tiles and bricks industry-English

TMI-Orion-DS-Logiciel Qlever pour l'industrie céramique-Français

TMI-Orion-DS-Qlever Software for ceramics industry-English
