NanoVACQ Temperature
Temperature monitoring and thermal validation inside cans, trays, containers, autoclaves, pasteurizators, ovens, dryers, freeze-dryers... From -90°C to +140°C.
The NanoVACQ Temperature is a data logger, watertight under pressure, made of 316L stainless steel with platinum technology sensors (Pt 100 ou Pt 1000). Its ruggedness allows temperature measurement in harsh industrial environments.
Many models are available, responding to most industrial needs. They vary by many aspects: number and type of probes, temperature operating range, battery capacity.
Operating ranges:
- From 0°C to +125°C,
- From -55°C to +140°C,
- From -90°C to +85°C.
- From -70°C to +140°C.

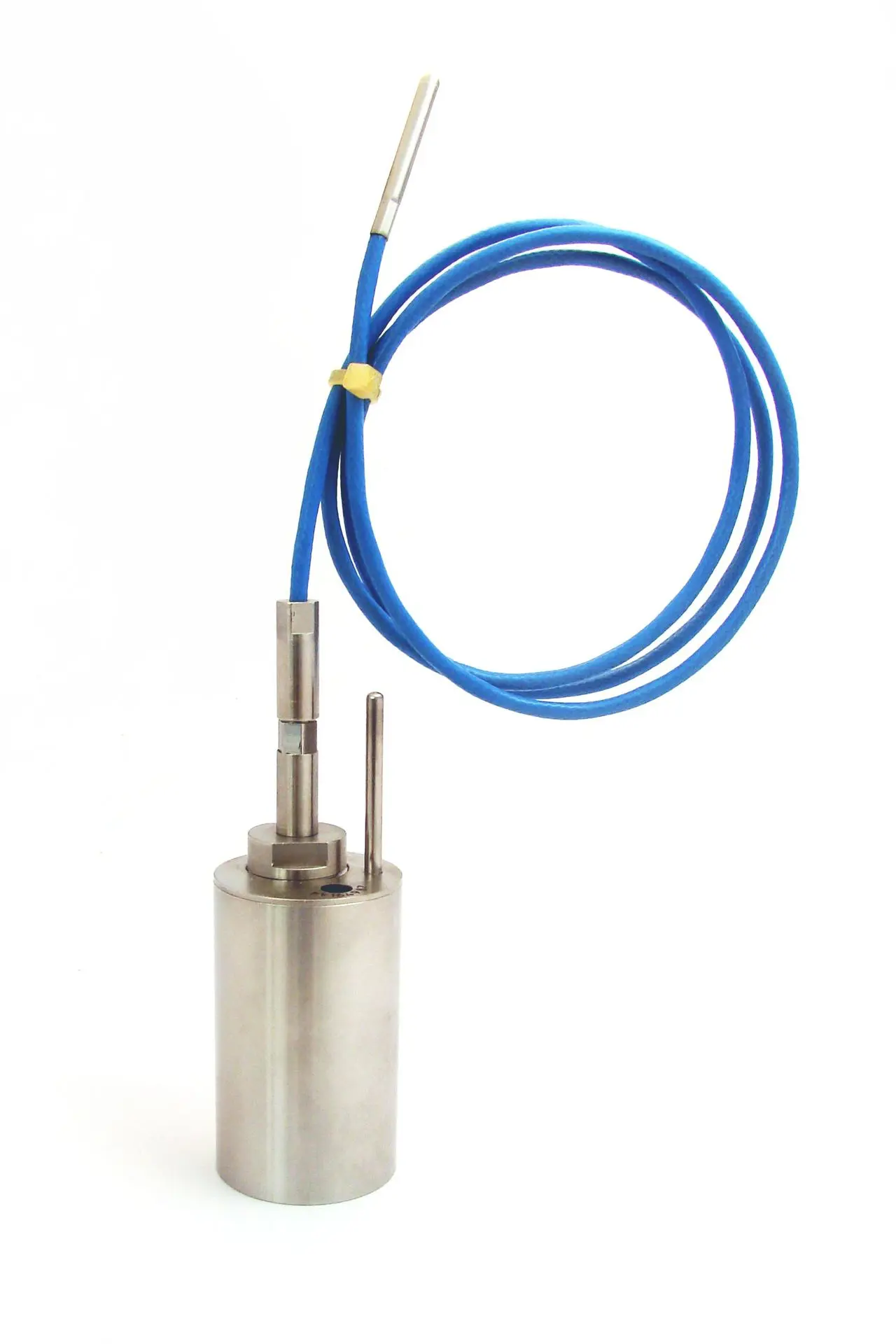

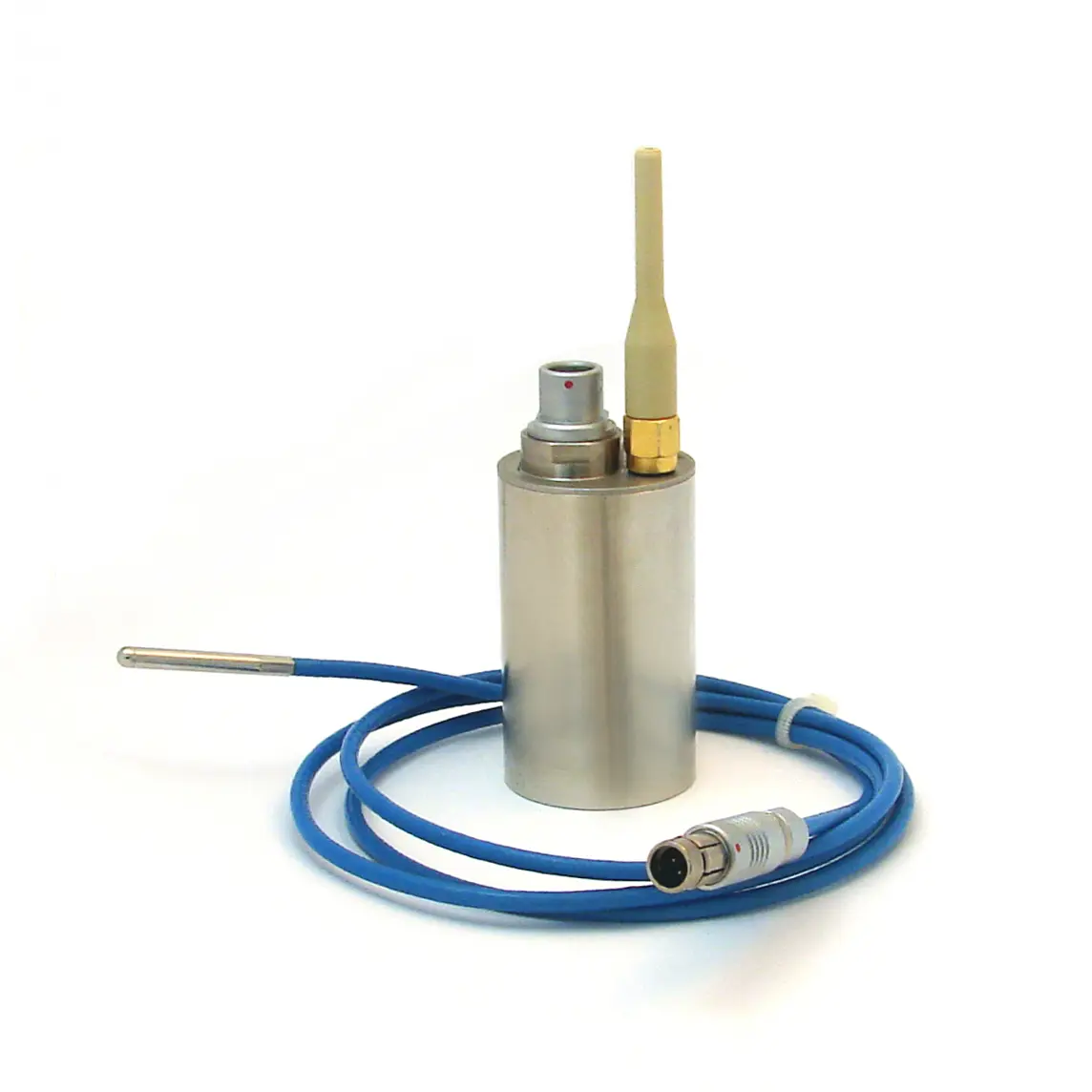

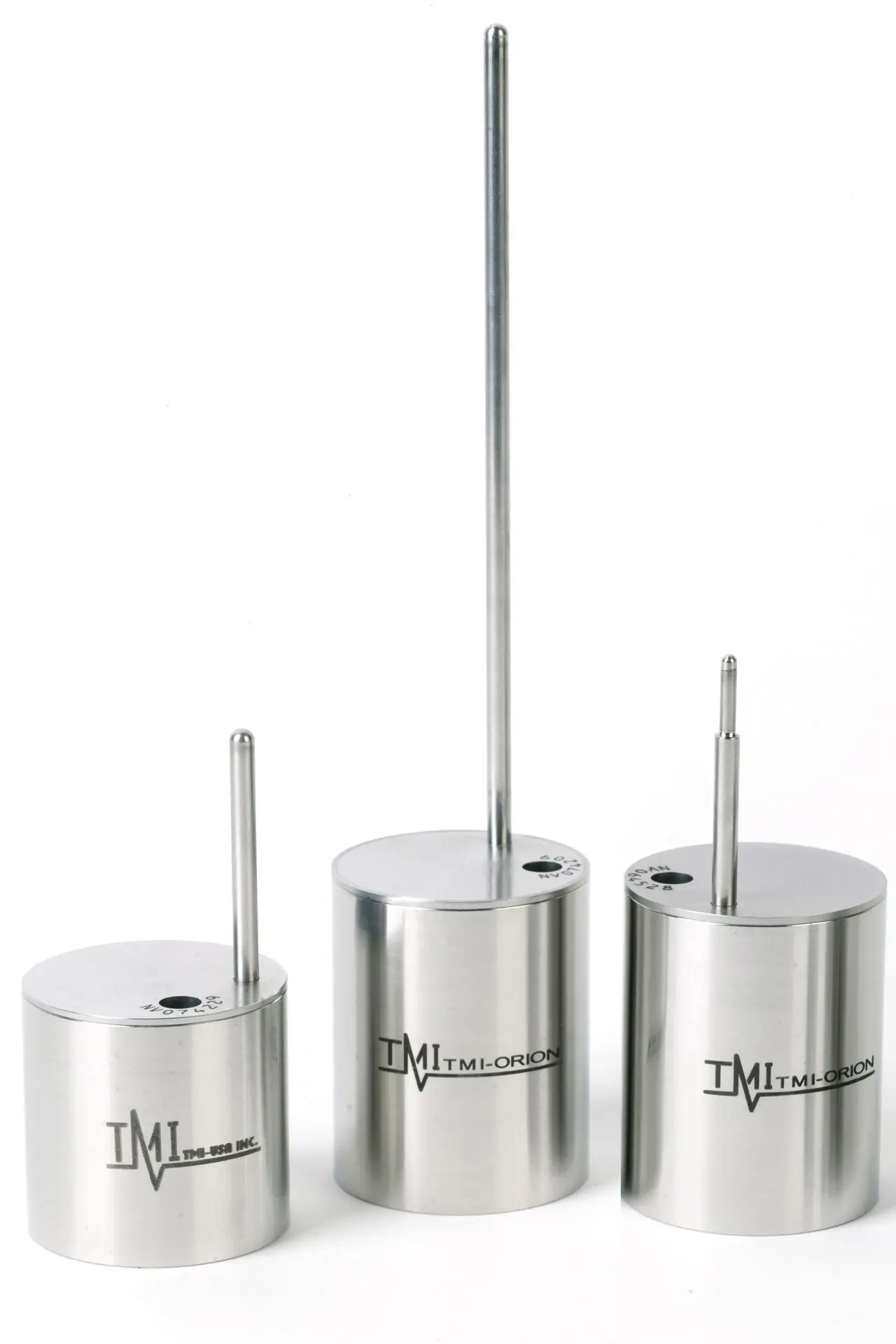

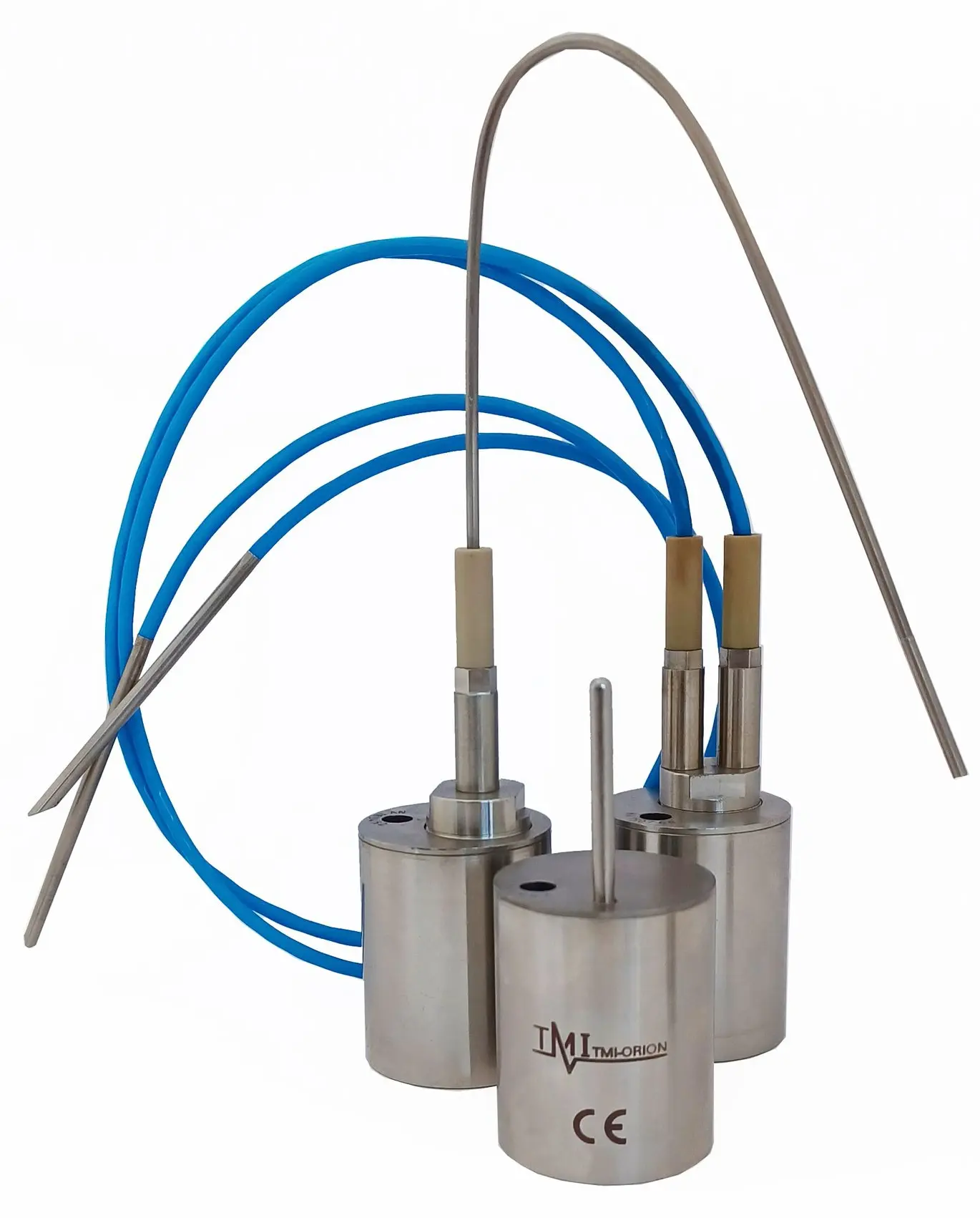

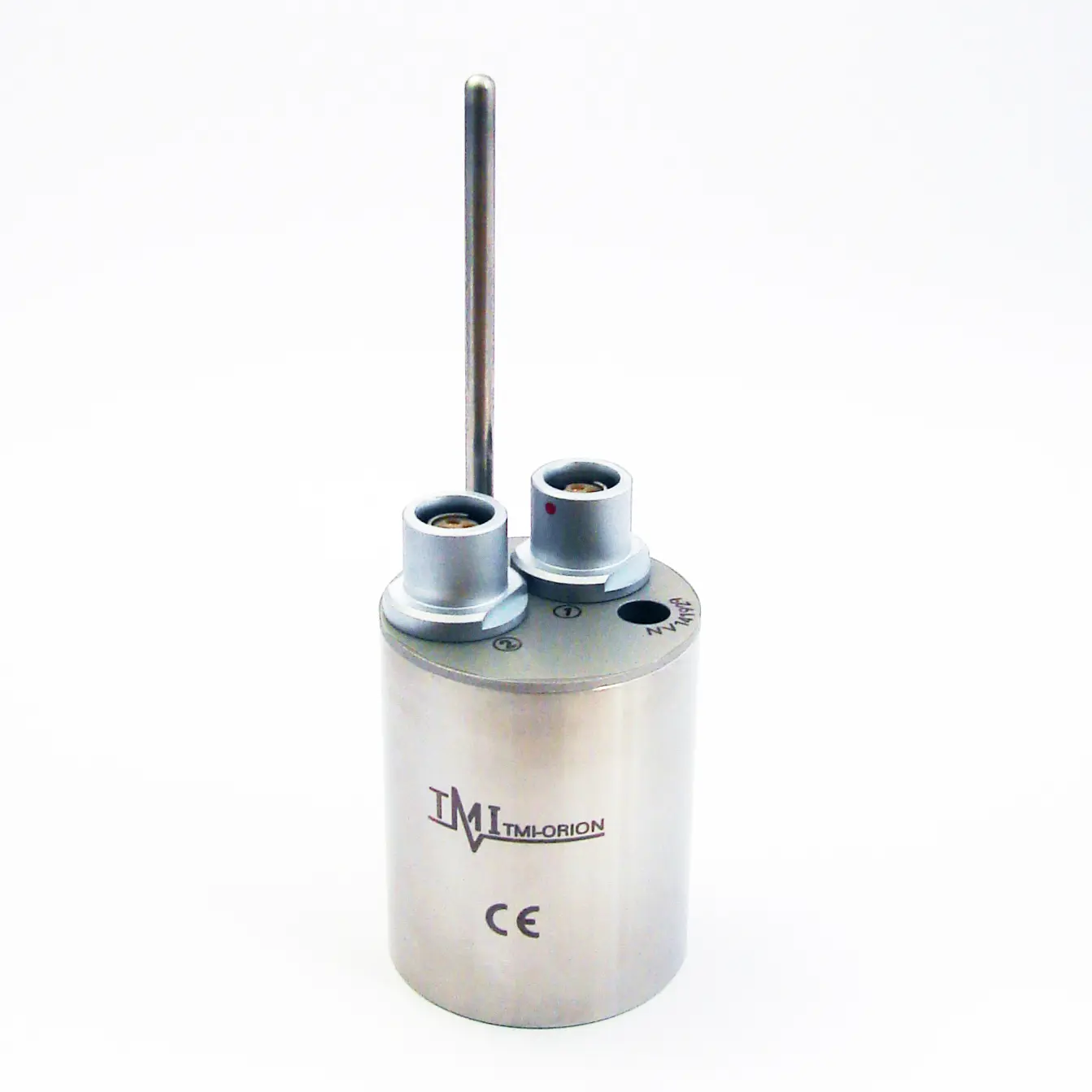

The NanoVACQ Temperature (diameter 31 mm, length from 31 to 132 mm) is equiped with 1, 2 or 3 temperature probes. The different standard models, that can also vary by probe length and shape, are briefly described below. For more details about their technical specifications, it is recommended to download the data sheet.

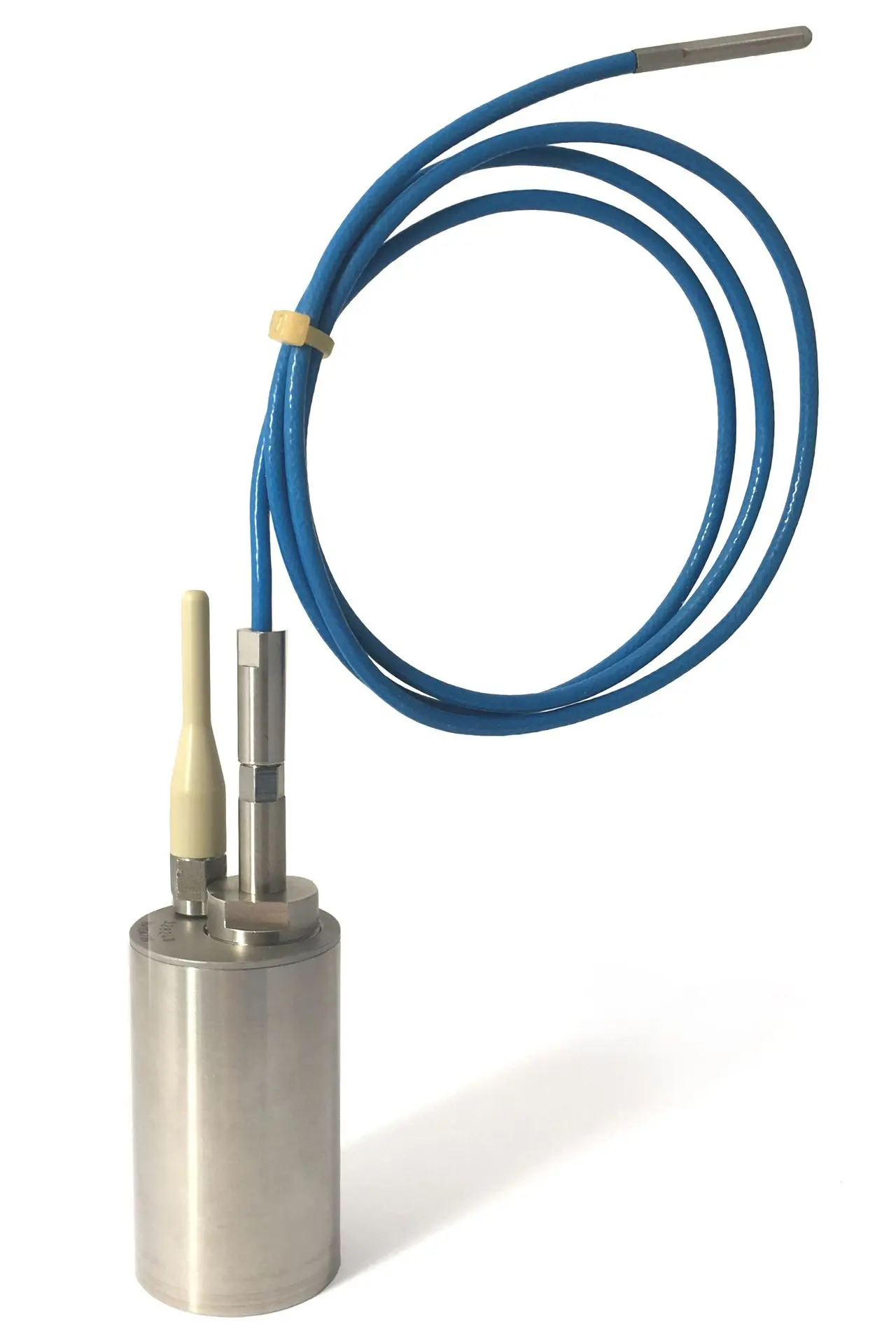

NanoVACQ Temperature FullRadio is available for full wireless data logging and real time monitoring.
ATEX Compliance

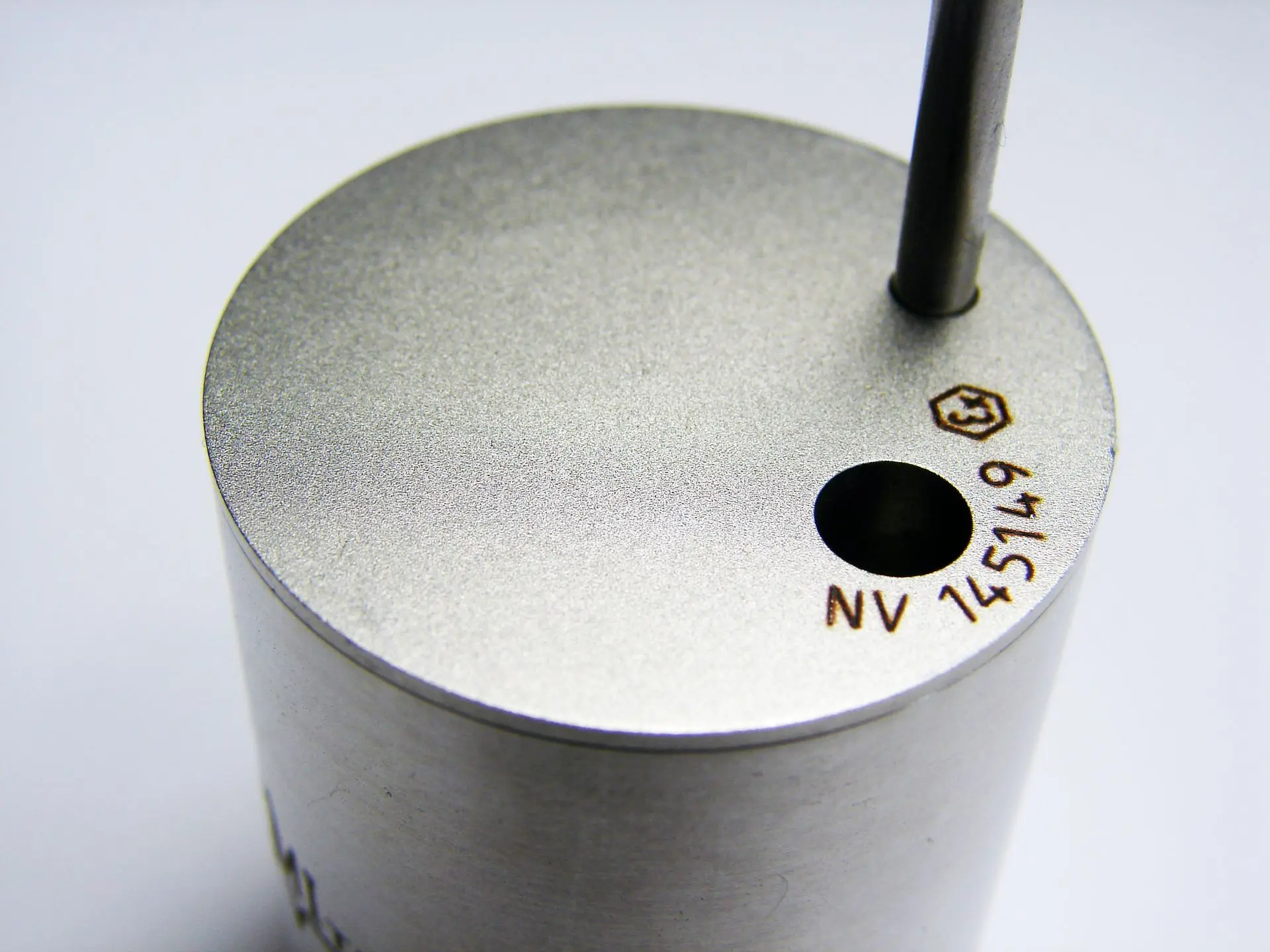

The NanoVACQ 1Tc and NanoVACQ 1Td are available in Ex version, norm II 1 G EEx IIC T6, compatible with the use in Ethylene oxyde sterilization. Please contact us for more info.

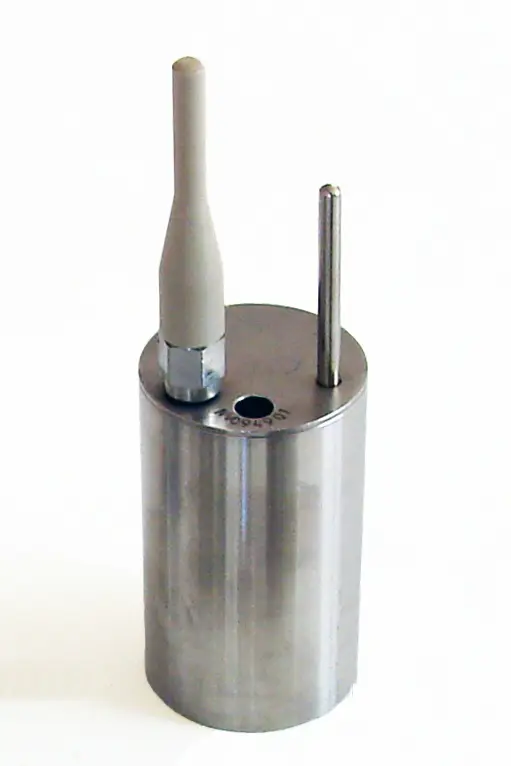

The FullRadio option allows the set up and reading of data in real time and wireless. It is then possible to start and stop the data logger while it stays inside the industrial process.
| For more info, please download the data sheet!
NanoVACQ Temperature FullRadio®
TMI-Orion solutions include:
- One or more embedded autonomous data loggers,
-
Qlever Software, which allows the acquisition, visualization and analysis of measured data,
- A wired, radio or FullRadio communication interface,
- A thermal shield for processes in which the temperature exceeds the temperature to which the datalogger can be exposed.
