PicoVACQ Pressure and temperature

Optimization of the treatment time in pressurized processes.

For processes where the pressure changes very quickly, bottle filling processes, processes with risk of package deformation…

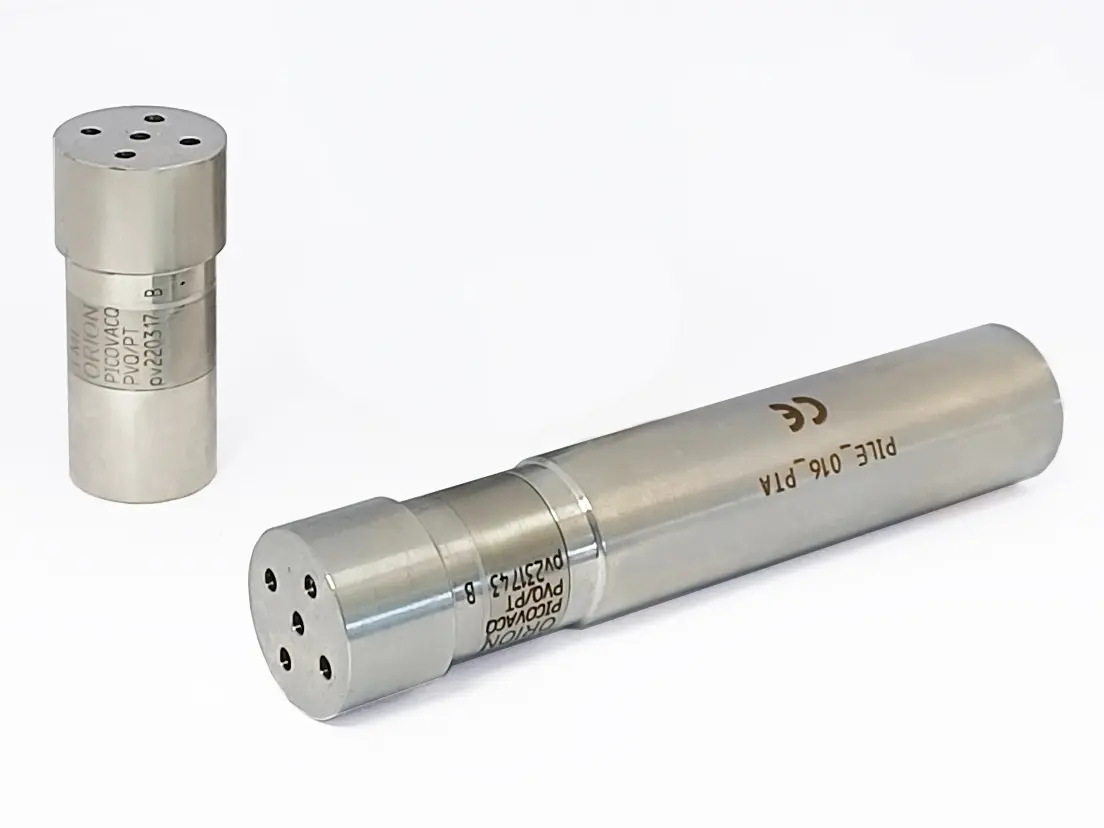

The PicoVACQ Pressure and temperature Type 3 is a very small autonomous data logger for temperature and pressure measurement, calibrated from 0°C to +140°C and from 30 mbar to 15 bar with an acquisition rate up to 256 acquisitions per second (256 Hz).

The PicoVACQ Pressure and temperature Type 3 offers higher performances:

• Acquisition rate: from 59 minutes and 59 seconds to 4, 64 or 256 acquisitions per second, depending on the model,
• Memory capacity: 2 096 966 acquisitions for the model PicoVACQ PT 256 Hz Type 3, or with the Big memory option,
• Optimized time drift: 1.5 second / 24 hours.

Designed for processes where temperature changes quickly, this data logger perfectly fits the needs of temperature and pressure measurement in bottle filling or processes with risk of package deformation…

TMI-Orion solutions include:

• One or more embedded autonomous data loggers,
• Qlever Software, which allows the acquisition, visualization and analysis of measured data,
• A wired, radio or FullRadio communication interface,
• A thermal shield for processes in which the temperature exceeds the temperature to which the datalogger can be exposed.
